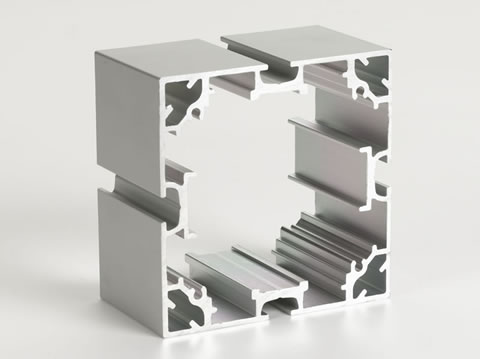

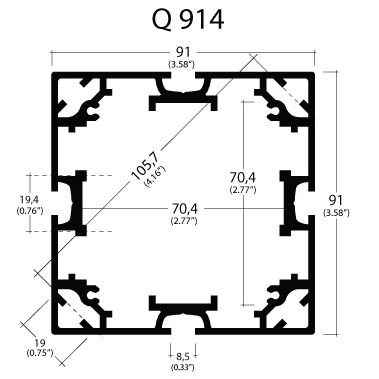

Q 914 | Square Profiles
| Compatible Accessories: QV 902 |
Download DXF File (right click to "Save As") |
  |
|
Notes: Square profile Insert AVR 911 and foot VR 91 thread M10 and foot plate SF 910 max. length 6 m (19.69 ft) |
 |
